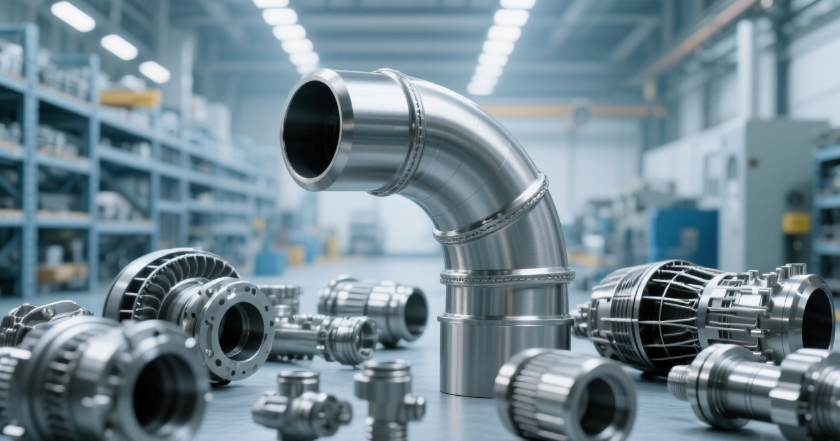

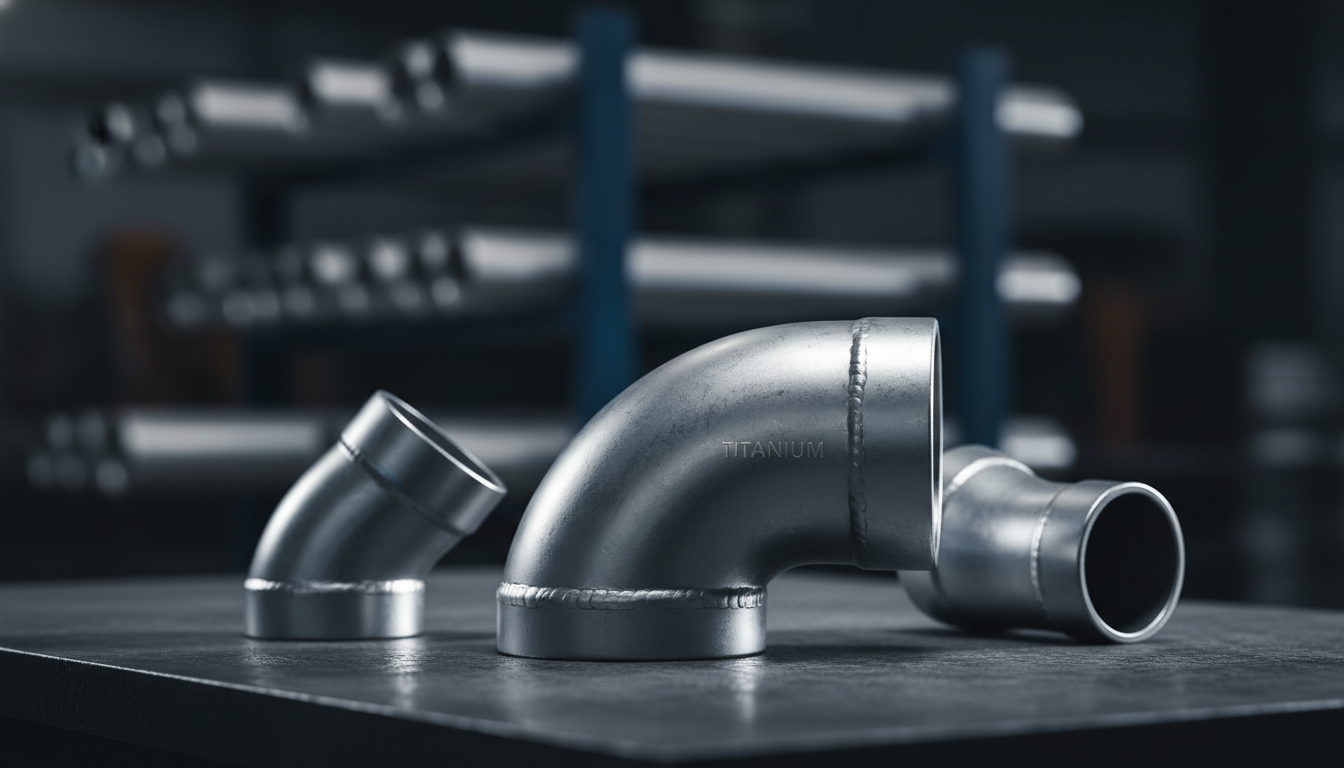

Titanium elbows are essential for changing fluid flow direction in complex piping systems, excelling in aggressive environments due to their unique properties. We offer high-quality titanium elbows to address engineering challenges in demanding applications.
Request a QuoteTitanium elbows are essential for changing fluid flow direction in complex piping systems, excelling in aggressive environments due to their unique properties. We offer high-quality titanium elbows to address engineering challenges in demanding applications.
Resists pitting and crevice corrosion in acids, chlorides, and seawater, ideal for chemical processing and marine systems.
Hardness and cavitation resistance extend service life in high-velocity fluid streams.
High strength-to-weight ratio benefits aerospace and offshore oil & gas applications.
Non-toxic properties make titanium elbows perfect for medical and pharmaceutical piping.
ASME B16.9: Factory-made wrought buttwelding fittings for dimensional compatibility.
ASTM B363: Seamless and welded titanium alloy fittings for pressure piping.
Grades: Commercially Pure (Grade 1, 2, 3, 4), Grade 5 (Ti-6Al-4V), Grade 7 (Ti-0.2Pd).

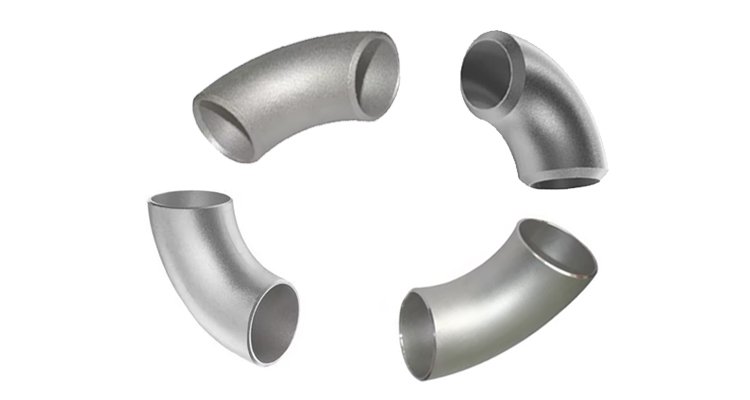

| Type | Description | Applications |
|---|---|---|
| 90-Degree Elbows | Long Radius (R=1.5D) or Short Radius (R=1.0D) | High-flow or space-constrained systems |
| 45-Degree Elbows | Changes flow direction by 45 degrees | Offset or angled piping layouts |
| Custom Angles | Non-standard angles per design needs | Specialized flow optimization |
Nominal Pipe Sizes (NPS): 0.5 inch (DN15) to 48 inches (DN1200).
Wall Thickness Schedules: Sch 10S, Sch 40S, Sch 80S, Sch 160, XXS.
Seamless and Welded Construction: Seamless for high-pressure, welded for cost-efficiency.
Precision Forming: Mandrel bending and hot/cold forming for accuracy.
Heat Treatment: Annealing to optimize ductility and corrosion resistance.
Dimensional Inspection: Ensures ASME B16.9 compliance.
Non-Destructive Testing (NDT): Ultrasonic, radiographic, and liquid penetrant testing.
Chemical and Mechanical Testing: Verifies composition and strength.
Hydrostatic Testing: Confirms leak tightness under pressure.
Pipelines and heat exchangers handling acids and chlorides.

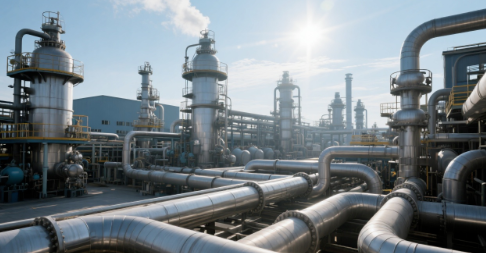

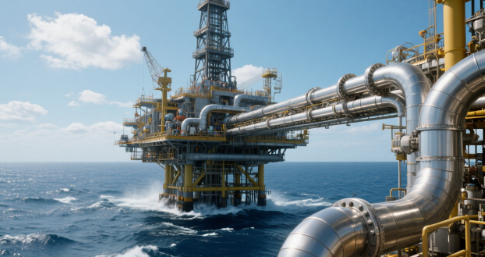

Offshore platforms, risers, and refineries resisting corrosion.

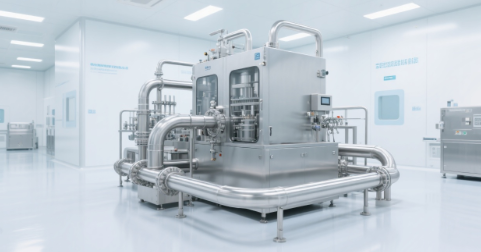

Sterile water and gas process lines for purity-critical applications.
Seawater cooling and ballast systems for naval and commercial vessels.
Condenser and cooling water lines in thermal and nuclear plants.
Engine bleed air and fuel lines for extreme conditions.
Longevity minimizes maintenance and failures.
Prevents leaks for personnel and environmental protection.
Smooth surfaces reduce pressure drop.
Meets stringent standards for critical projects.
Non-Standard Angles and Radii: Custom elbows for optimized flow.
Special Wall Thicknesses: Enhanced durability for extreme conditions.
Surface Treatments: Anodizing or passivation for specific requirements.
Integrated Assemblies: Pre-fabricated spools to reduce installation time.
Strategic Stockholding: Ample inventory for rapid dispatch.
Transparent Pricing: Tailored quotes for specific needs.
Global Logistics: Shipping with EXW, DDP, FOB, CIF, and FAS terms.
Contact our team for product details or a free quote. We provide tailored fabrication for unique piping needs.
