China Titanium Factory is a leading titanium tube manufacturer and dedicated titanium tube supplier, specializing in high-performance titanium tubing for critical applications. Our products are engineered to meet the stringent requirements of aerospace, medical, chemical processing, and power generation industries, offering an unparalleled combination of corrosion resistance, high strength-to-weight ratio, and durability.
We offer a comprehensive range of products, including titanium seamless tubes for high-pressure systems and titanium welded tubes for cost-effective, large-scale projects. Our inventory covers commercially pure titanium (Grades 1, 2) and high-strength titanium alloys (Grades 5, 7, 9, 12), ensuring we have the perfect material solution for your specific needs.
Our titanium heat exchanger tubes and titanium condenser tubes are renowned for their superior resistance to aggressive media, including seawater, chlorides, and various acids. The naturally forming, stable oxide layer on titanium ensures structural integrity and long service life, making it the ideal material for desalination plants and chemical reactors.
Especially with titanium alloy tubes like Grade 5 (Ti-6Al-4V), our tubing provides immense strength while significantly reducing weight. This is critical for performance-driven applications such as aerospace hydraulic tubing and high-end automotive exhaust systems, where weight savings directly translate to improved efficiency and performance.
We utilize advanced techniques like cold drawing and precision rolling to produce small diameter titanium tubes and standard sizes with exceptional dimensional accuracy. Every tube is subjected to rigorous quality control, including ultrasonic and eddy current testing, to guarantee compliance with international standards like ASTM B338 and ASTM B861.
We supply titanium tubes in all major grades, tailored for specific performance requirements:
| Grade | Type | Key Characteristics | Primary Applications |
|---|---|---|---|
| Grade 1 & 2 | Commercially Pure (CP) | Excellent formability, superior corrosion resistance, most common for general industrial use. | Heat Exchangers, Condensers, Desalination Plants. |
| Grade 5 (Ti-6Al-4V) | Alpha-Beta Alloy | Highest strength (over 900 MPa), excellent fatigue resistance. | Aerospace Hydraulic Systems, High-Performance Exhaust. |
| Grade 7 (Ti-0.2Pd) | CP + Palladium | Enhanced resistance to reducing acids and crevice corrosion. | Aggressive Chemical Processing Equipment. |
| Grade 9 (Ti-3Al-2.5V) | Near Alpha Alloy | Good strength, excellent cold formability, often used for seamless tubing. | Bicycle Frames, Hydraulic Tubing, Sporting Goods. |
Our product line includes various forms to suit different engineering needs:

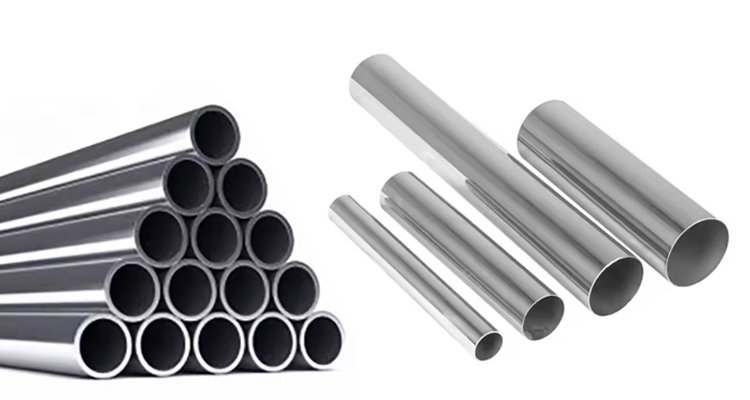

Seamless Titanium Tubes: Ideal for high-pressure and high-temperature applications, offering superior wall thickness uniformity. (OD: 0.4 mm – 340 mm)
Welded Titanium Tubes: Cost-effective for large-volume, lower-pressure applications.
Specialty Tubing: Including titanium coiled tubing, finned tubing, and square tubes for specialized heat transfer and structural uses.
Our precision-engineered titanium tubes are vital components across global industries:
We are a trusted supplier of titanium heat exchanger tubes and condenser tubes for:
Desalination Plants: Multi-stage flash distillation (MSF) and reverse osmosis (RO) systems.
Chemical Reactors: Handling aggressive acids and alkaline solutions.
Power Plants: Seawater-cooled condensers in thermal and nuclear facilities.
Our high-strength, lightweight titanium alloy tubes are used in:
Aircraft Hydraulic Systems: High-pressure, lightweight fluid transfer lines.
Aero-Engine Components: Tubing for fuel and oil systems in high-temperature environments.
We provide medical-grade titanium tubing for its superior biocompatibility:
Surgical Instruments: Precision small diameter tubing for endoscopes and arthroscopes.
Medical Devices: Components for infusion pumps and implantable devices.
Contact Us for a Free Quote on Titanium Tubes & Tubing Solutions
