High-Performance Titanium Anodizing Racks and Fixtures

In high-volume metal finishing, the choice of racking material determines the boundary between profit and operational waste. China Titanium Factory engineers advanced titanium anodizing racks that solve the fundamental failures of traditional aluminum jigging.

Our fixtures utilize premium CP titanium wire and precision-machined Industrial Titanium Products to withstand aggressive sulfuric and chromic acid environments. By integrating custom titanium disc clips, we provide a stable electrochemical platform for Tier 1 aerospace and medical manufacturers.

The Science of Grade 2 CP Titanium in Anodizing Baths

Titanium anodizing racks utilize Grade 2 CP titanium to form a stable, non-conductive oxide film in electrolytic baths. This layer prevents the rack from being consumed while maintaining high electrical conductivity at the point of contact with the workpiece.

The electrochemical stability of CP Grade 2 titanium is its greatest asset. In an anodizing tank, the titanium surface instantly polarizes, forming an insulating oxide layer. This film is thin enough to be pierced by mechanical pressure at contact points but robust enough to protect the rest of the jig from corrosion.

"According to ASTM B265 standards, unalloyed titanium (Grade 2) provides the optimal balance of ductility and corrosion resistance required for complex jigging systems."

Unlike aluminum anodizing fixtures, which are stripped away by the very process they facilitate, titanium remains dimensionally stable. This eliminates the need for frequent acid stripping, protecting the environment and your bottom line.

The China Titanium Precision-Fit Protocol

We do not just build racks; we engineer throughput. Our proprietary Precision-Fit Protocol is a 5-step manufacturing framework designed to ensure zero-defect surface finishing in 2026 industrial environments.

• CAD/CAM Modeling: Every rack begins as a digital twin to optimize part density and drainage.

• Material Selection: We utilize only certified Titanium Grade Guide compliant Grade 2 sponge-to-sheet materials.

• Precision Machining: Specialized CNC processes create high-tolerance hooks and splines.

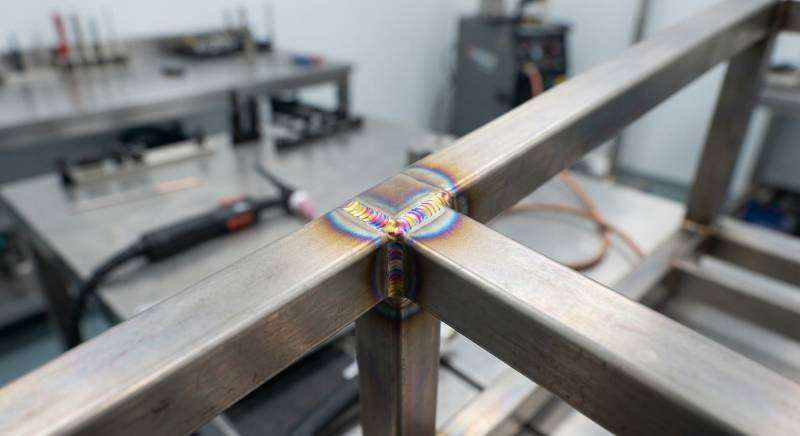

• Certified TIG Welding: Our welders hold international certifications to ensure joints withstand thermal expansion and chemical stress.

• Stress-Relief Testing: Every custom fixture undergoes physical load testing to prevent deformation under high current loads.

Technical Data: Current Density and Load Calculations

Successful anodizing requires precise electrical conductivity. Our engineering team calculates the required cross-sectional area of the titanium spine based on your specific amperage requirements.

While titanium's electrical conductivity is lower than copper or aluminum, its ability to maintain contact point optimization under pressure is superior. We design for a standard current carrying capacity of 8-10 Amps per square inch of contact point, depending on the geometry of the titanium disc clips.

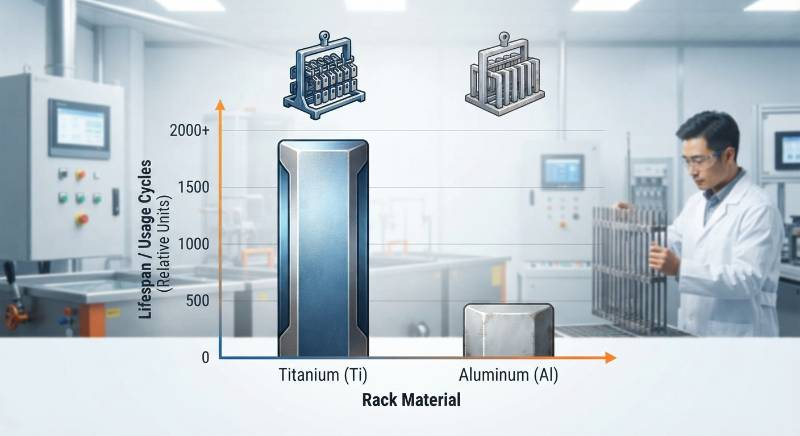

ROI Analysis: Titanium vs. Aluminum Rack Longevity

In our manufacturing experience, the initial CAPEX for titanium is higher, but the Total Cost of Ownership (TCO) is exponentially lower. An aluminum rack typically lasts 15-30 cycles before the critical dimensions are lost to chemical etching.

A China Titanium Factory Grade 2 rack can exceed 3,000 cycles without significant material loss. When factoring in the elimination of caustic stripping agents and the reduction in labor for jig maintenance, the ROI is typically realized within the first 6 months of high-volume production.

Custom CNC Machined Components for Complex Geometries

Modern components in the medical and aerospace sectors often feature internal threads or delicate fins that standard spring-finger racks cannot hold securely. We utilize advanced CNC Machining Services to produce custom titanium clamps and threaded hooks.

These specialized fixtures ensure uniform coating thickness and prevent "shadowing"—a common defect in inferior racking systems. Our custom titanium clamps are engineered to provide consistent contact pressure, preventing arcing that can ruin expensive workpieces.

Global Logistics and Rapid Prototyping

China Titanium Factory operates a streamlined B2B production pipeline. We provide a 24-hour quoting system for all STEP or IGES files. Whether you require a single prototype for a new medical implant or 5,000 racks for a global automotive line, our facilities are scaled for rapid export.

We handle all aspects of global shipping, ensuring that your custom fixtures arrive with full metallurgical certifications and compliance documentation, ready for immediate integration into your finishing line.

Frequently Asked Questions about Titanium Racking

How do I maintain titanium racks?

Maintenance is minimal. Periodic mechanical cleaning of the contact points with a light abrasive is usually sufficient. Unlike aluminum, they do not require chemical stripping baths.

Can titanium racks be used in electropolishing?

Yes. Grade 2 titanium is excellent for electropolishing applications involving phosphoric and sulfuric acid mixtures, providing the same longevity benefits seen in anodizing.

What causes arcing on titanium racks?

Arcing is usually caused by insufficient contact pressure or debris at the contact point. Our Precision-Fit Protocol designs specifically for high-tension contact to mitigate this risk.

Request a Technical Consultation and 3D Design

Don't settle for "off-the-shelf" fixtures that compromise your finishing quality. Partner with an industry leader who understands the chemistry of the tank and the physics of the rack.
