What is MMO Anode Recoating? Restoring Industrial Efficiency

In high-stakes electrochemical environments, the catalyst—not the substrate—does the heavy lifting. Over time, the Mixed Metal Oxide (MMO) layer on your titanium electrodes wears down. When this happens, voltage requirements spike and efficiency plummets. But the titanium base remains largely intact.

MMO Anode Recoating is defined as the industrial process of stripping exhausted noble metal oxide layers from a titanium substrate and reapplying a fresh, high-activity catalytic coating to restore original electrochemical performance.

Instead of scrapping expensive metal, a professional MMO anode recoating service allows facilities to retain their existing hardware. This isn't just a repair; it’s a full restoration to OEM standards. At China Titanium Factory, we view titanium as a permanent asset, not a consumable.

The Omni-Cycle™ Restoration Protocol: Our Proprietary 5-Step Process

Generic recoating often fails because of poor surface preparation. We don't cut corners. Our Omni-Cycle™ Restoration Protocol is a rigorous methodology designed to maximize the bond between the substrate and the new noble metal oxides.

1. Chemical Stripping & Cleaning

We use proprietary acid baths to remove the residual iridium or ruthenium layers without attacking the underlying titanium. This ensures the substrate dimensions remain within tolerance.

2. Mechanical Surface Activation

To ensure coating adhesion, the surface must be "roughed" at a microscopic level. We use controlled grit blasting to create a specific anchor profile. This increases the surface area for the electrocatalytic activity.

3. Precision Noble Metal Application

Depending on your application (Chlor-alkali, Seawater Electrolysis, or Electro-winning), we apply multiple layers of Iridium, Ruthenium, or Tantalum salts. Every coat is monitored for uniform noble metal loading.

4. Thermal Processing

The anodes are baked in high-temperature ovens. This converts the metal salts into stable oxides. It’s a delicate balance of time and temperature to ensure the coating doesn't become brittle.

5. Electrochemical Testing

We verify the accelerated life and oxygen/chlorine evolution potential of every batch. We don't ship until the performance matches a new MMO titanium electrode.

The Economics of Recoating: CAPEX vs. OPEX Savings

The math is simple. Titanium prices are volatile. By reusing your existing frames, you bypass the cost of raw material procurement and fabrication. According to our internal analysis, recoating generally costs 50-60% less than buying new.

For large-scale operations, the ROI of anode recoating is realized within the first six months of operation. Lowering your voltage requirement by even 100mV through fresh coating can save thousands in monthly electricity bills.

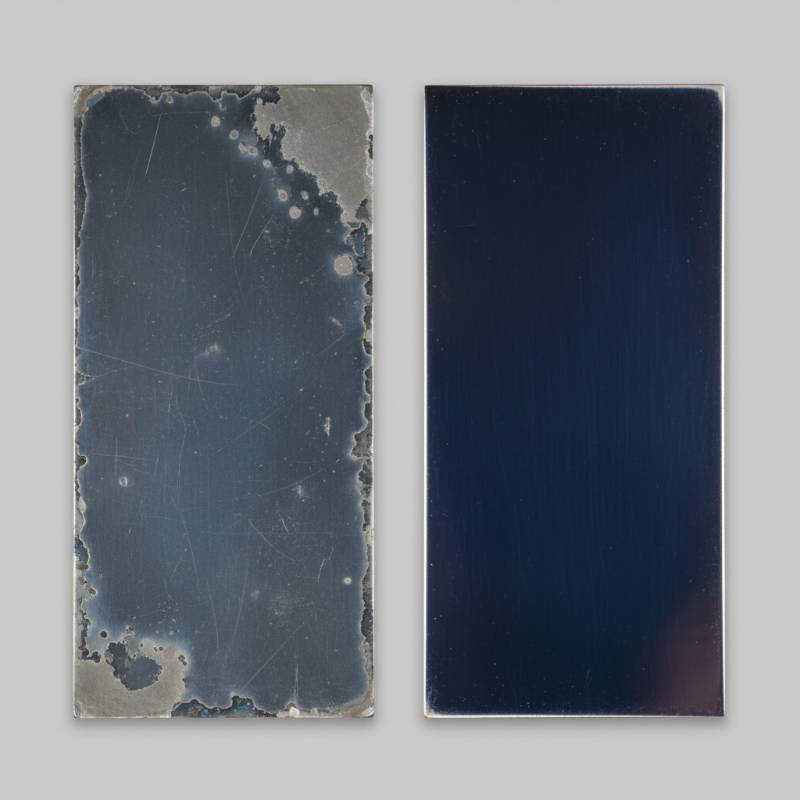

Is Your Anode a Candidate for Recoating? A Visual Assessment Guide

Not every anode can be saved. We follow the Substrate Integrity Principle: If the titanium base retains 90% of its original structural thickness and hasn't suffered severe mechanical deformation, it is a prime candidate for restoration.

When to Recoat:

• Increased cell voltage without changes in electrolyte concentration.

• Visible thinning of the dark oxide layer, exposing the grey titanium.

• Uniform surface appearance with no major holes.

When to Replace:

• Pitting corrosion that has perforated the titanium mesh or plate.

• Severe warping or mechanical deformation that prevents proper cell alignment.

• Excessive "thinning" of the current distribution bars.

Sustainability and ESG: The Environmental Impact of Titanium Reuse

Titanium production is energy-intensive. By choosing an MMO anode recoating service, you are directly participating in the circular economy. Reusing 1,000kg of titanium saves approximately 30 tons of CO2 emissions compared to primary production.

Many of our clients use these carbon footprint metrics to meet their annual ESG goals. According to NACE International, extending the life of industrial materials is one of the most effective ways to lower the environmental burden of heavy industry.

Technical Specifications: Precision Coating for Diverse Applications

We don't believe in one-size-fits-all. Our recoating services are tailored to the specific electrochemical environment of your facility.

• Chlor-Alkali Industry: High-efficiency Ruthenium-Iridium coatings for low chlorine evolution potential.

• Seawater Electrolysis: Specialized coatings to resist scale formation and endure high-flow environments.

• Cathodic Protection: Long-life Iridium-Tantalum oxides for soil and concrete applications.

• Coating Thickness: Typically ranges from 2 to 20 grams per square meter, depending on the required anode lifespan extension.

Detailed specifications for our noble metal oxide coatings are available upon request for engineering review.

Global Logistics and Rapid Turnaround Times

Downtime is the enemy of profit. We’ve optimized our global logistics to handle international shipments of used electrodes. Our team provides documentation support for "Temporary Export for Repair" to minimize customs delays and taxes.

We offer a shipping estimator and 24/7 tracking for all industrial maintenance scheduling. Most recoating projects are completed within 15-20 business days of arrival at our facility.

Frequently Asked Questions About MMO Anode Recoating

How many times can a titanium anode be recoated?

Most titanium substrates can be recoated 3 to 5 times. The limit is usually determined by the cumulative loss of titanium during the chemical stripping phases of previous cycles.

Will recoated anodes perform as well as new ones?

Yes. In many cases, we can apply a modern, more efficient coating than what was originally provided by the OEM, potentially improving your cell efficiency.

How do I ship my used anodes to you?

We recommend crate packing with dividers to prevent mechanical damage during transit. We can provide specific packing guidelines and coordinate with international freight forwarders.

Do you offer a performance guarantee?

Absolutely. All our recoating services come with a performance guarantee that mirrors our new product warranties, ensuring peace of mind for your operations team.

Ready to Slash Your Electrode Costs?

Stop scrapping valuable titanium. Our MMO Anode Recoating Service is the most cost-effective way to maintain your electrochemical plant.

Get a custom quote based on your current anode condition and application.
